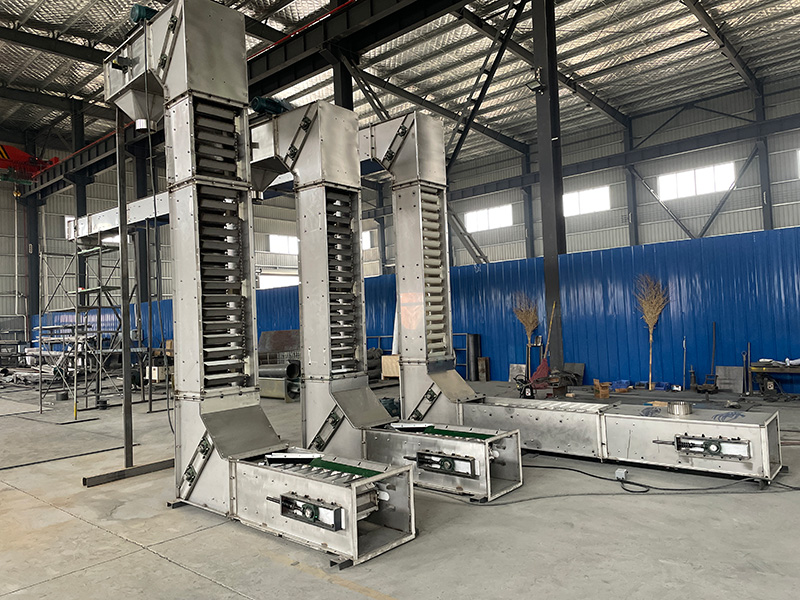

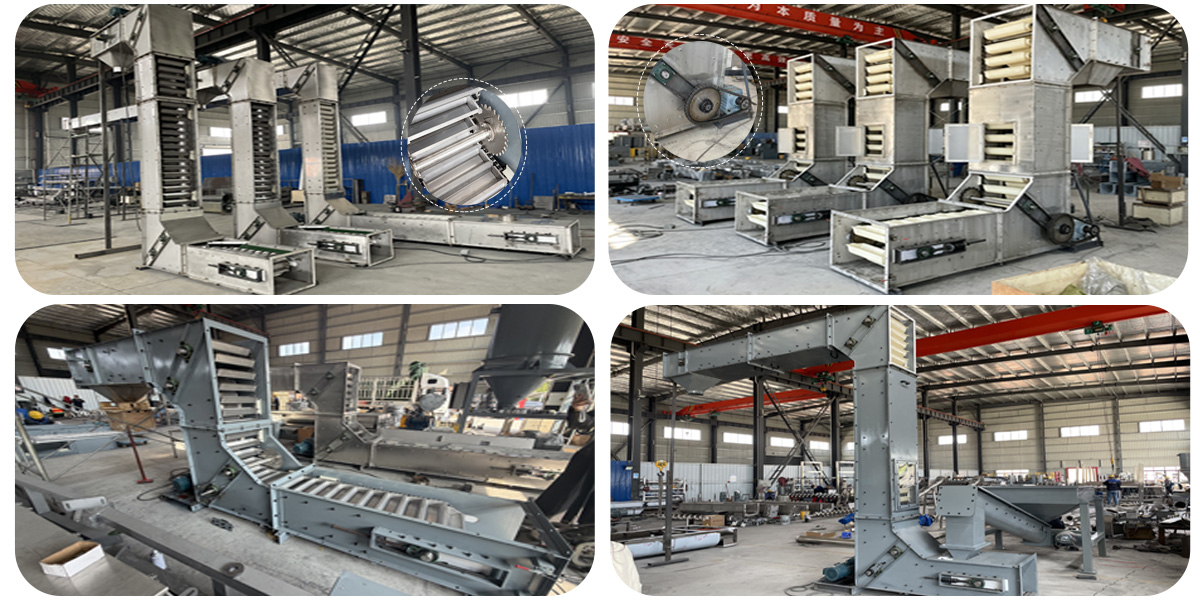

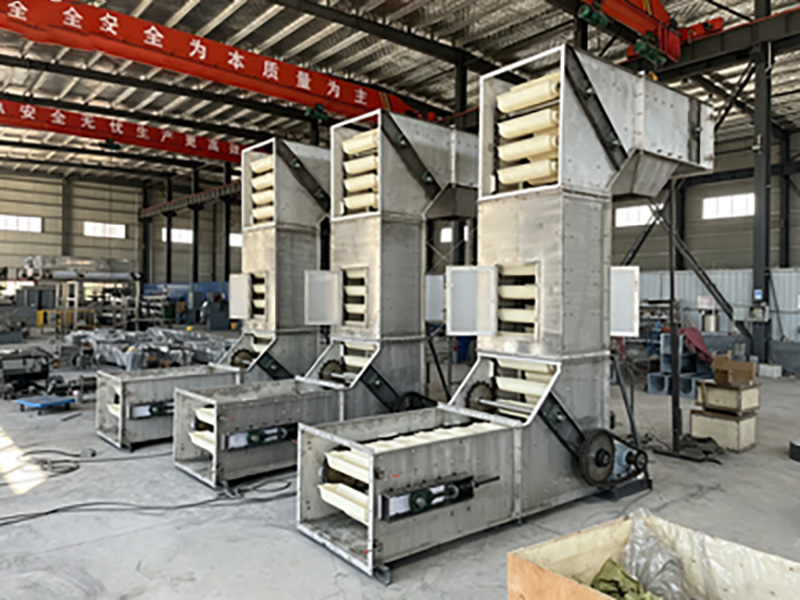

Z Type Bucket Conveyor

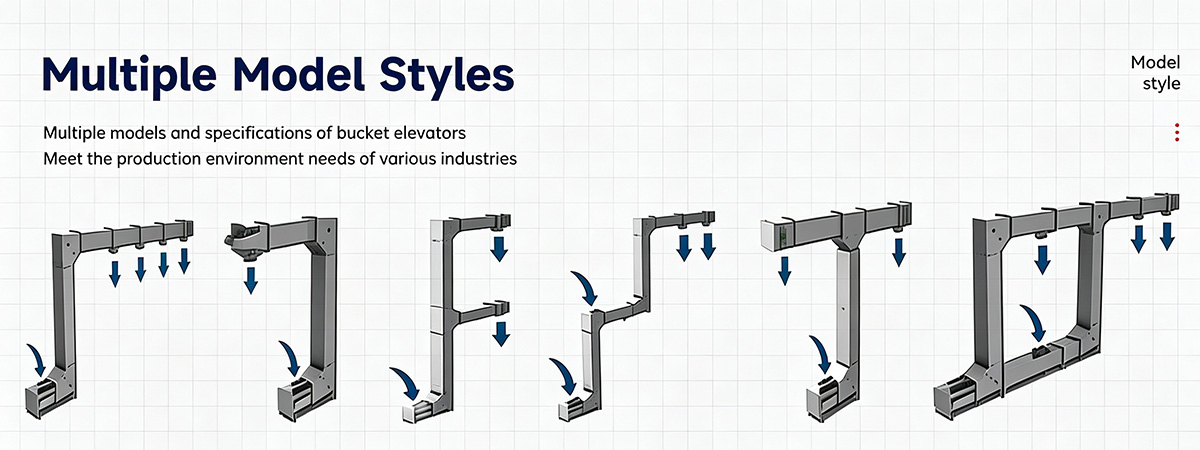

The Z-type hoist is mainly used to transport products from a low position to the required height and distance. The materials are conveyed through a hopper suspended on a chain. The hopper can be horizontally vertically horizontally combined and can be transported at a single point or discharged at multiple points through a discharge device. The hopper capacity is 1.8L, 4L, 6L, and the feeding height is about 500mm. In addition, according to requirements, the discharge height can range from 2 meters to 12 meters.
Models:
•ZX-160 / ZX-330 / ZX-500 / ZX-650 Series (Customization supported)
Bucket Capacity:
•Multiple options including 1.8L, 4.0L, 6.0L
Conveying Capacity:
•3 - 67 m³/h (Depends on model and material bulk density)
Lifting Height:
•2m - 40m (Customizable based on site conditions)
Horizontal Length:
•1.2m - 40m (Supports any combination form)
Operating Speed:
•0.18 - 0.3 m/s (Supports stepless variable frequency speed control)
Drive Mode:
•Gear motor + Chain drive, equipped with torque protector and anti-reverse device
