Shaftless Screw Conveyor-Henan Keming Machinery Equipment Co., Ltd.

Advantages

Superior Anti-Wrapping & Anti-Blockage Performance

Without central shaft interference, it excels at conveying belt-like, high-moisture, and easily tangled materials. It fundamentally solves the jamming and blockage accidents caused by hair, fibers, or sludge wrapping in traditional equipment.

High Torque & Low Energy Consumption

Because the discharge outlet is not prone to blockage, the equipment operates smoothly at lower speeds, reducing energy consumption while providing high torque of up to 4000N/m. For the same diameter, its conveying capacity is 1.5 times that of traditional shafted conveyors.

Fully Enclosed Eco-Friendly Design

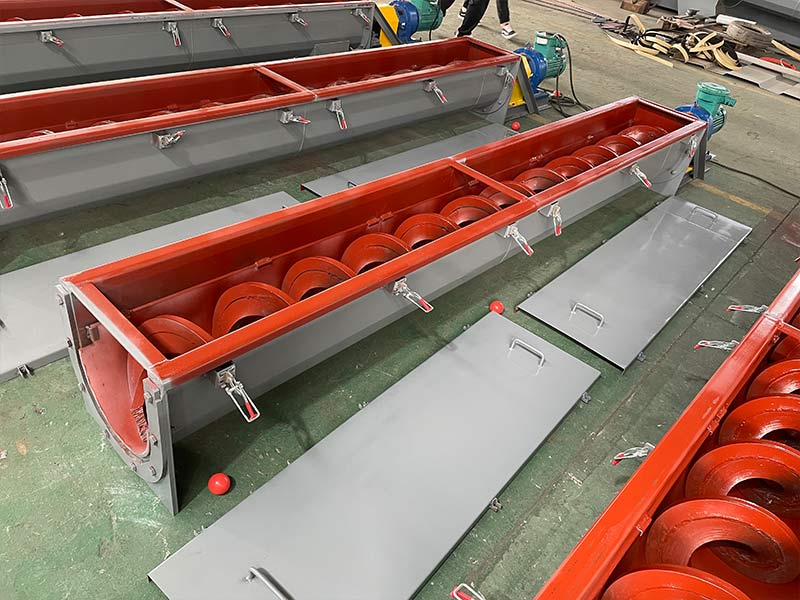

The U-shaped trough combined with a fully sealed cover effectively prevents odor emission, dust flying, and material leakage, ensuring environmental hygiene and protecting conveyed materials from external contamination.

Long-Distance & Flexible Layout

A single unit can convey materials up to 60 meters, and multiple units can be connected in series for ultra-long-distance transport. Its compact structure supports horizontal or inclined (generally ≤30°) layouts, saving valuable space.

Easy Maintenance & Long Lifespan

Wear-resistant liners (such as nylon or HDPE) are laid at the bottom of the trough to reduce friction and wear. The absence of intermediate hanger bearings significantly reduces wearing parts, resulting in minimal daily maintenance requirements.

Selection Guide

Material Matching

For highly viscous, easily caked, or fibrous materials (e.g., sludge, food waste), a shaftless design is mandatory. If the material is dry and non-sticky, traditional shafted equipment is sufficient.

Capacity & Size Evaluation

Select the appropriate screw diameter based on the required hourly conveying volume (m³/h). Note that when the inclination angle exceeds 15°, the conveying capacity must be multiplied by a corresponding reduction factor (e.g., the factor is about 0.65 at 20°).

Material & Liner Selection

When conveying corrosive materials (e.g., sewage, chemical waste), the casing and screw body should be made of 304 or 316L stainless steel. It is highly recommended to install wear-resistant non-metallic liners inside the trough to extend the equipment's service life.

Installation & Maintenance

Installation Standards

The drive unit is recommended to be installed at the discharge end so that the screw body is in tension during operation. Flanges at the inlet and outlet must fit tightly. The equipment must be started without load (start when the casing is empty, and stop only after materials are completely discharged).

Daily Maintenance

Regularly check the oil level of the reducer; inspect the wear of the trough liners and replace them promptly if severely worn; never remove the cover during operation to avoid safety accidents.

Fault Prevention

Strictly prevent large, hard foreign objects (e.g., metal tools, stones) from mixing into the materials to avoid jamming and deforming the screw blades. Feeding should be uniform to prevent instantaneous overload and damage to the drive unit.

Frequently Asked Questions

Q1: Why does a shaftless screw conveyor not need intermediate hanger bearings?

Traditional shafted screws require hanger bearings to support the long shaft, which is exactly where sticky materials are most likely to wrap and jam. The shaftless screw uses a flexible integral steel blade, driven directly from the drive end and sliding on bottom wear-resistant liners. This fundamentally eliminates the need for intermediate support and completely removes the risk of wrapping.

Q2: Can this equipment convey materials vertically?

It is not recommended. Shaftless screw conveyors are mainly suitable for horizontal or small-angle inclined conveying (typically ≤30°). If the angle is too steep or vertical, materials will fall back severely due to gravity, rendering the equipment inoperable. For vertical lifting, a bucket elevator is recommended instead.

Q3: What should be done if the screw blades wear out too quickly?

In shaftless screws, the stress is concentrated on the blades. Blades that are too thin or have a pitch that is too small can cause crushing damage. It is recommended to use thickened wear-resistant blades and install high-strength wear-resistant liners (such as UHMWPE boards) at the bottom of the U-shaped trough. This not only protects the blades but also reduces operating noise.
