Advantages

Efficient Heat Exchange & Precise Temperature Control

Utilizing a double-layer jacket or hollow screw blade design, the cooling medium circulates to achieve highly efficient "solid-wall-liquid" conductive heat transfer. It can rapidly cool high-temperature furnace charges (800℃-1000℃) to safe levels, preventing material caking and protecting downstream equipment.

Superior Sealing & Anti-Deformation Capability

The fully enclosed tubular or U-shaped double-layer structure prevents hot dust leakage and odor emission. Moreover, the cooling water removes heat from the casing, fundamentally solving thermal expansion and deformation issues caused by high temperatures.

Externalized Key Components & Long Lifespan

Head and tail bearing seats are placed outside the casing, utilizing high-temperature-resistant bearings and multi-layer sealing technology to minimize dust intrusion. Combined with wear-resistant liners, the equipment's lifespan in harsh conditions is significantly extended.

Integrated Conveying & Cooling

A single piece of equipment accomplishes both conveying and cooling processes, eliminating the need for additional cooling silos or air-cooling towers, thereby saving valuable workshop space and production line construction costs.

Selection Guide

Based on Cooling Requirements

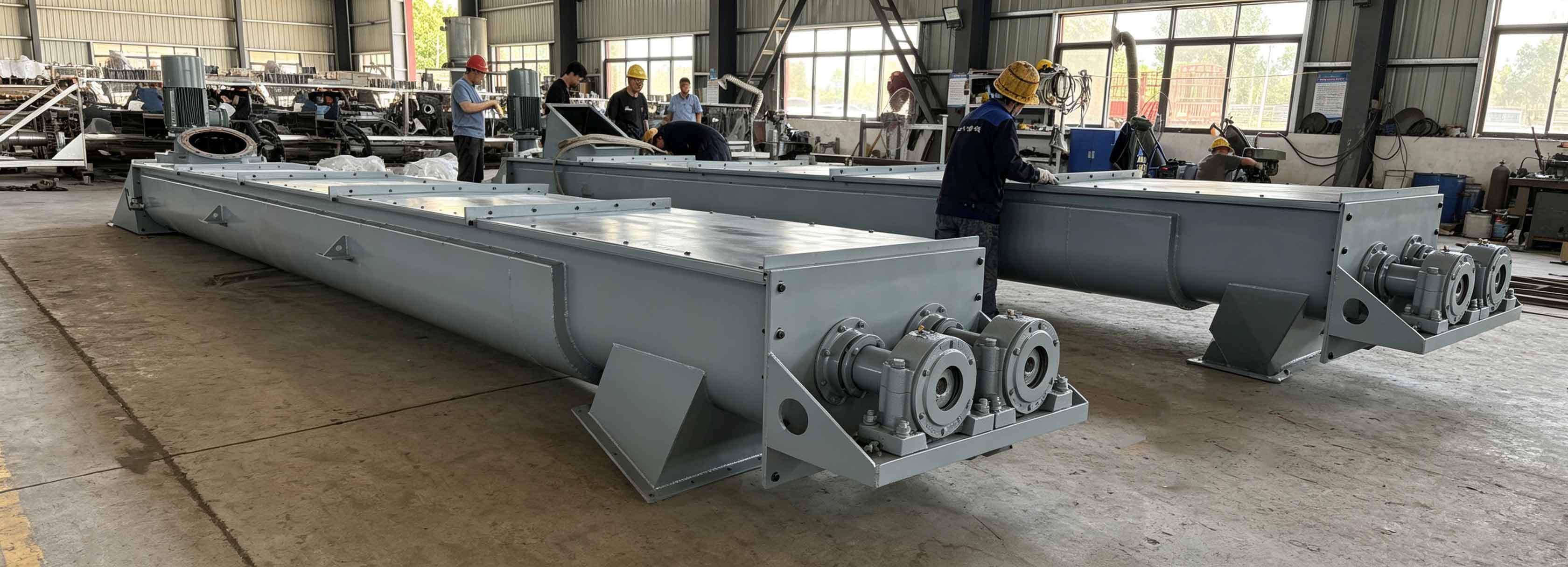

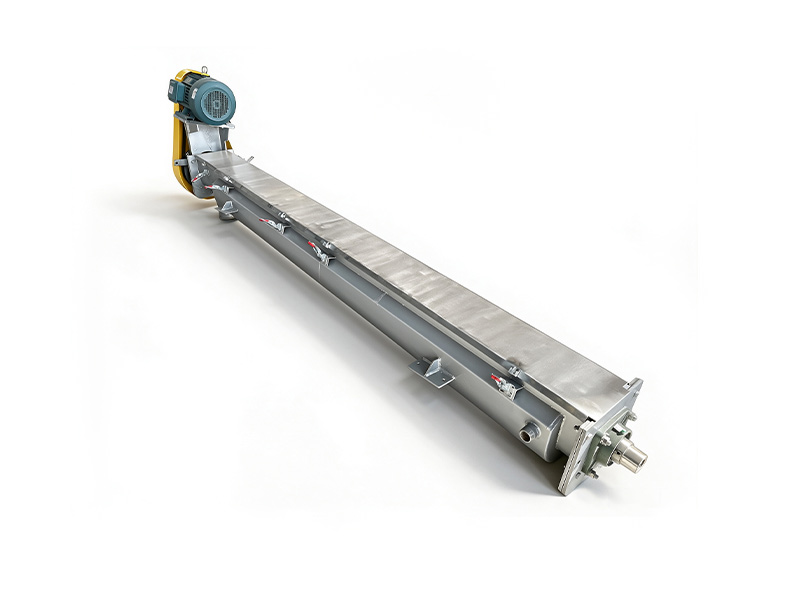

If the temperature drop requirement is mild (≤30℃) and the material is moisture-sensitive, an air-cooled screw conveyor is recommended. For large temperature drops (>30℃), high capacity, or high ambient workshop temperatures, a water-cooled cooling screw conveyor is mandatory.

Based on Material Characteristics

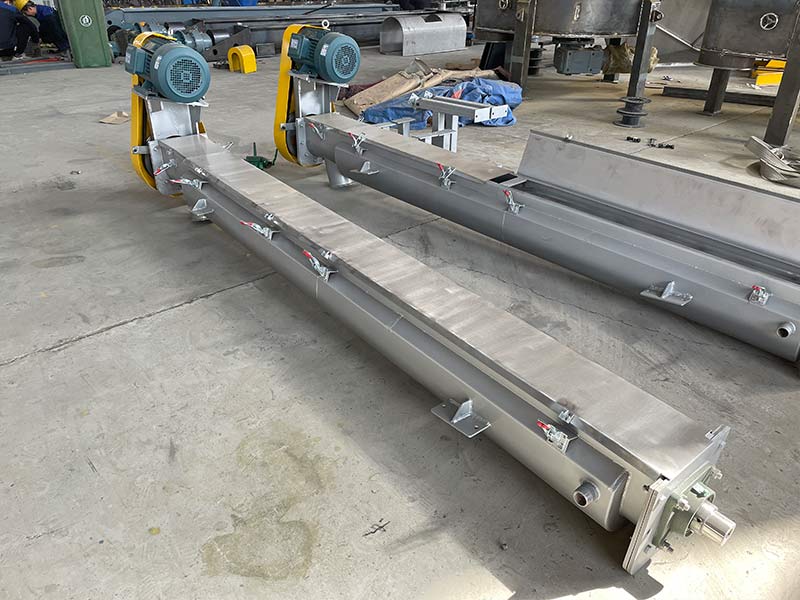

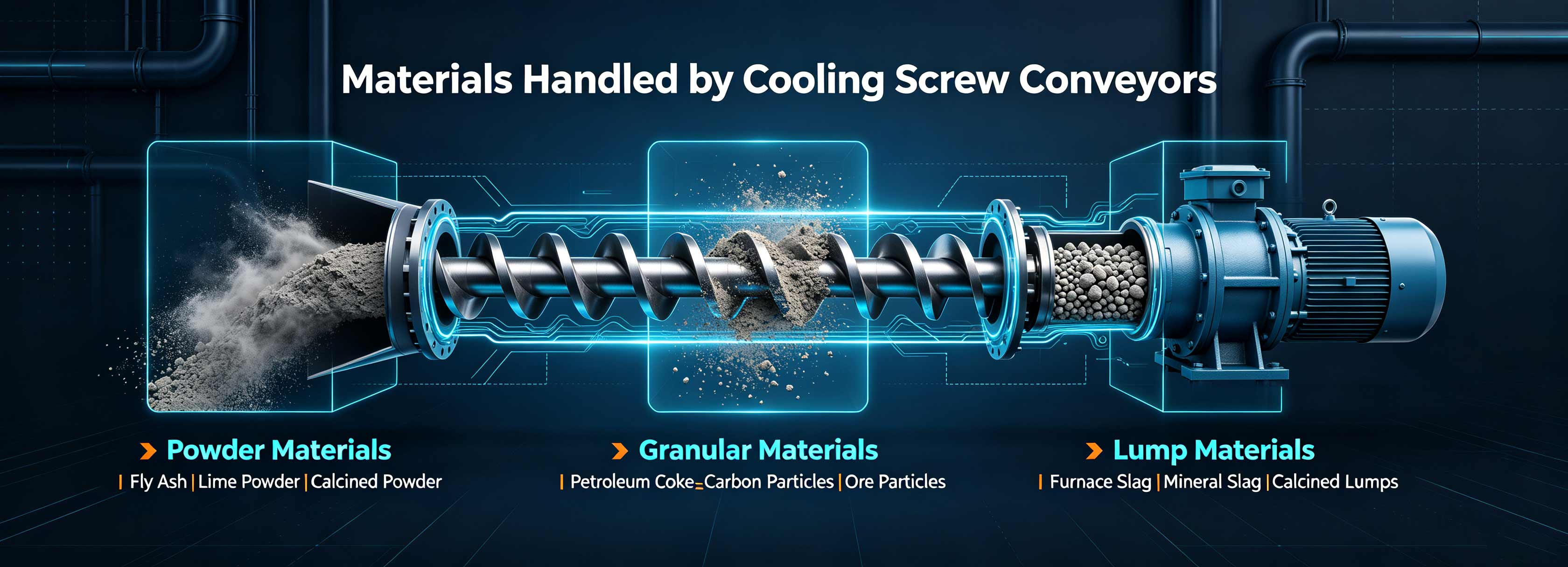

For powders and granules (e.g., cement clinker), select a tubular water-cooled design. For sticky or easily caked hot materials, a U-shaped structure with wear-resistant liners is recommended to prevent materials from sticking and rotating with the screw.

Material & Interface Confirmation

The inner tube and screw blades in contact with materials should be made of 304/316L stainless steel to withstand high temperatures and prevent corrosion, while the outer tube can be carbon steel. Confirm the inlet/outlet positions for cooling water pipes and on-site water pressure requirements in advance.

Installation & Maintenance

Installation Standards

The equipment must be installed on a solid, level foundation, ensuring trough levelness and concentricity error with the screw body ≤5/1000. High-temperature seals must be used at cooling water pipe connections, followed by pressure testing to prevent leaks.

Daily Maintenance

Cooling water must be supplied before startup; dry running without water is strictly prohibited. Regularly inspect the wear of rotary joints and seals to prevent cooling water from seeping into the materials. Before shutdown, stop feeding first, and only turn off the cooling water system after the tube is completely emptied.

Fault Prevention

If the discharge temperature rises abnormally, check for insufficient cooling water flow or scale blockage in the pipes. In case of blockage, never force a restart; clear the materials through the cleaning door and investigate the cause.

Frequently Asked Questions

Q1: What is the difference between water-cooled and air-cooled screw conveyors? How do I choose?

Air-cooled relies on air convection, suitable for mild temperature drops (≤30℃), moisture-sensitive lightweight granules (e.g., plastic pellets), and offers lower equipment costs. Water-cooled relies on liquid conduction, providing stronger cooling capacity for large temperature drops, high-capacity, or high-ambient-temperature scenarios (e.g., hot slag, cement clinker).

Q2: How does the equipment prevent cooling water from leaking into the materials during high-temperature conveying?

Our equipment is equipped with specialized high-temperature rotary joints at both ends of the screw shaft, and jacket welds undergo strict flaw detection and pressure testing. Additionally, head and tail bearings feature multi-layer dust and waterproof sealing designs to effectively isolate cooling water from materials, ensuring production safety.

Q3: Why can't traditional screw conveyors directly convey materials over 200℃?

Traditional screw conveyors are designed for operating temperatures between -20℃ and 200℃. Above 200℃, the casing and screw shaft suffer severe thermal deformation due to uneven heating, leading to screw jamming and motor burnout. High temperatures also rapidly bake the lubricating oil in hanger bearings, causing bearing failure. The cooling screw conveyor is specifically engineered to solve this pain point.
