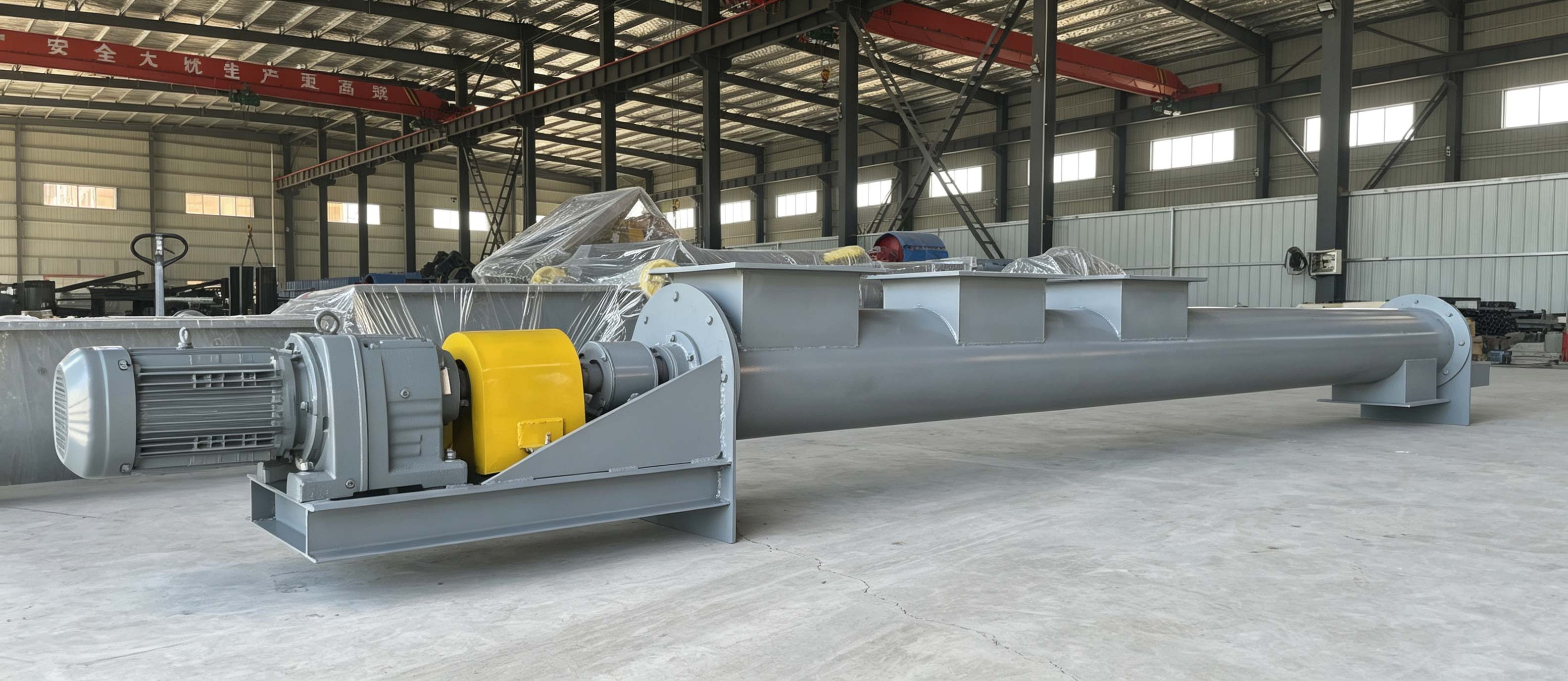

Tubular Auger Conveyor
Tubular screw conveyor is a sealed continuous conveying equipment. It pushes materials inside the closed pipe through rotating spiral blades. With tubular housing structure, the machine features excellent tightness and supports horizontal, inclined and small-angle lifting conveying. Compact in structure and space-saving, it prevents dust leakage during operation. It can steadily convey powder, granular and small lump bulk materials. Customized length, pipe diameter and driving mode are available to match automatic production lines.
Screw Diameter:
100mm - 600mm (customizable)
Conveying Capacity:
1 - 150 m³/h
Conveying Length:
Single-end drive ≤35m; Double-end drive >35m
Maximum Inclination:
≤20° (larger angles reduce conveying efficiency)
Operating Temperature:
Standard materials -20～80℃; High-temperature conditions up to 1000℃ (requires heat-resistant alloy steel)
Drive Mode:
Variable frequency motor + reducer (supports stepless speed regulation)
