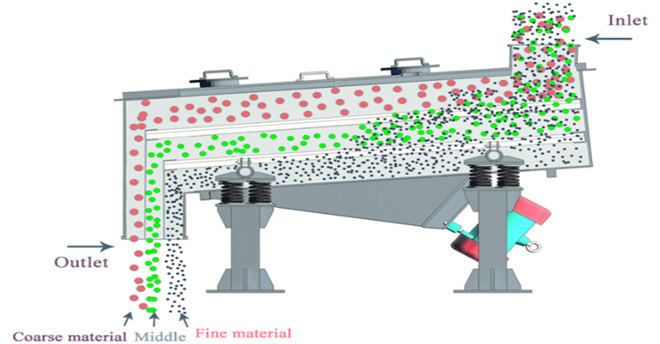

Working principle

The linear vibrating screen is a high-efficiency industrial screening machine driven by dual vibration motors. By generating synchronous reverse excitation force, it produces stable horizontal linear vibration, pushing materials forward evenly on the screen surface to achieve continuous grading, dewatering, dedusting and impurity removal.

The linear vibrating screen is driven by two vibrating motors. The two motors rotate synchronously and reversely at the same speed. The eccentric blocks generate excitation forces. The forces parallel to the motor axis cancel each other out, while the forces perpendicular to the motor axis are superimposed, forming a single linear exciting force. This drives the screen box to vibrate linearly. Material is fed onto the screen surface, thrown up and moved forward in a straight line, and is graded through one or more screen decks. Different particle sizes are discharged from their respective outlets.

Parameter

Model	KM-520	KM-525	KM-530	KM-1020	KM-1025	KM-1030
Nominal Size (mm)	500×2000	500×2500	500×3000	1000×2000	1000×2500	1000×3000
Material Particle Size (mm)	0.074--10	0.074--10	0.074--10	0.074--10	0.074--10	0.074--10
Vibration Frequency (times/min)	960	960	960	960	960	960
Power (kW)	2×(0.4-0.75)	2×(0.4-0.75)	2×(0.4-0.75)	2×(0.4-1.1)	2×(0.4-1.1)	2×(0.4-1.5)
Amplitude	3―4.5	3―4.5	3―4.5	3―4.5	3―4.5	3―4.5
Number of Layers	1--6	1--6	1--6	1--6	1--6	1--6
LS500	500	400	60	93.1	4.1	15.3
Screen Deck Inclination Angle	0°－7°	0°－7°	0°－7°	0°－7°	0°－7°	0°－7°

Advantages

Stable Vibration & High Screening Efficiency

Dual-motor synchronous drive delivers consistent linear vibration, enabling uniform material dispersion and forward movement. It effectively prevents material accumulation and screen clogging, achieving a screening efficiency of over 95%.

Large Throughput & Continuous Operation

The extended flat screen surface maximizes screening area and material retention time, supporting high-volume continuous production. It perfectly matches large-scale industrial production line requirements.

Rugged Structure & Low Failure Rate

Integrally welded screen box and thickened steel frame provide excellent load-bearing and impact resistance. Premium wear-resistant core components ensure stable long-term operation and extended service life.

Flexible Adjustable Parameters

TVibration amplitude, frequency and screen inclination angle are all adjustable. The machine can be flexibly optimized to adapt to materials of different particle sizes and humidity, fitting diverse working conditions.

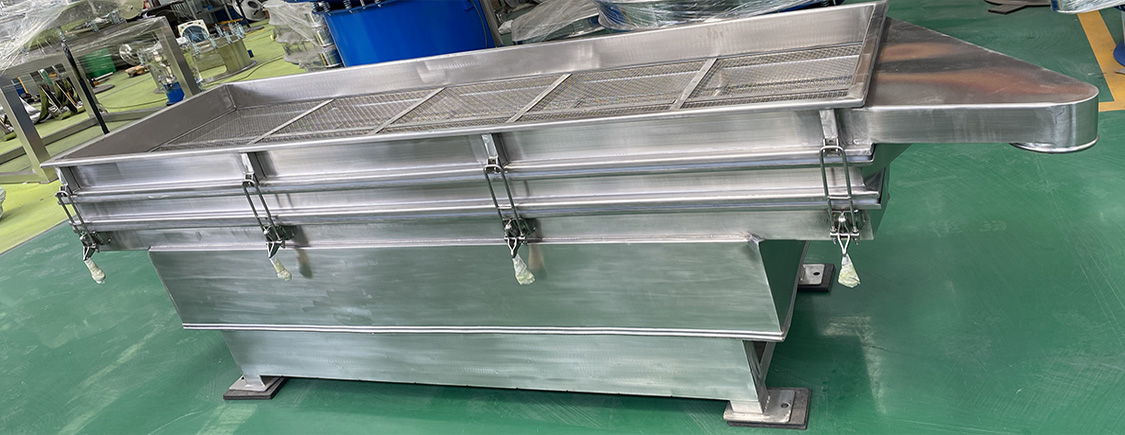

Linear-Vibrating-Screen

Custom according to your needs

Linear Vibrating Screens are available in multiple models. Customization is supported to match your specific requirements, including dimensions, number of layers, screen meshes, inlet and outlet configurations. Optional designs such as gate type, mobile wheel type, elevated type and airtight type are also offered. We guarantee to provide the ideal screening machine tailored to your unique working conditions.

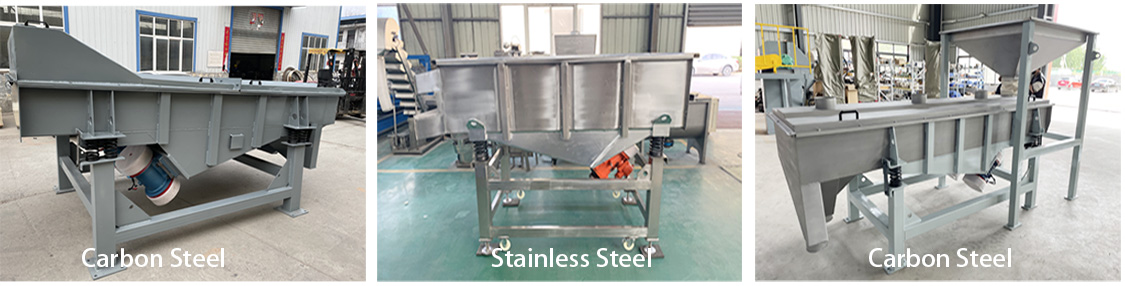

material

Applicable Industries

Mining & Aggregates

Grading of river sand, quartz sand, gravel and mineral particles

Chemical Industry

Screening and purification of fertilizer particles, plastic granules and chemical powder

Food & Grain Processing

Sorting and cleaning of corn, rice, wheat, nuts and starch materials

Building Materials

Screening of limestone, gypsum, cement raw materials and refractory materials

Metallurgy & New Energy

Classification of metal powder, battery materials and mineral powder

Coal Industry

Coal particle grading and coal slime dewatering

Applicable Materials

Applicable Material

Mineral Materials

Quartz sand, feldspar, limestone, granite, ore powder, river sand.

Chemical Materials

Fertilizer, plastic particles, resin powder, industrial chemical raw materials.

Food & Agricultural Materials

Grain, corn, soybean, nuts, sugar grains, starch.

Industrial Powders & Particles

Metal powder, battery powder, refractory powder, cement raw materials.

Wet Materials

Ore pulp, coal slime, fine sand and sludge for dewatering and grading.

Frequently Asked Questions

Q1:What is the difference between linear and rotary vibrating screens?

Linear vibrating screens adopt straight-line vibration, ideal for large-output grading and dewatering of medium and coarse materials for mass production. Rotary vibrating screens apply 3D circular vibration, mainly for high-precision fine powder screening with smaller capacity.

Q2: How to avoid screen mesh blocking?

The machine can be equipped with anti-clogging bouncing balls. Reasonably adjusting feeding speed and vibration amplitude also effectively prevents material accumulation and mesh blocking for stable continuous operation.

Q3: Can it process wet materials?

Yes. It has excellent adaptability to both dry and wet materials. It is widely used for dewatering and desliming of ore pulp, coal slime and other wet materials.

Q4: Is the screen mesh replaceable?

Yes. The screen mesh is a wearable part with simple and fast disassembly. We provide stainless steel and manganese steel meshes for selection.

Q5: Do you support customized machines?

Customization is available. We can adjust screen size, layer quantity, voltage, dust-proof structure and mobile base according to customer site conditions and output demands.
